INNOVATION IN CONNECTIVITY

LigoDLB MACH 5AC

Designed to provide maximum performance in any conditions.

Metal IP standards rated enclosure not only protects from harsh weather conditions, but also allows using high-power radio for long distance links at the same time creating a shield for unwanted RF noise from nearby sources.
Directional 23 dBi panel antenna makes this product ideal for medium to long range communication both in point to point and point to multipoint scenario.

Outstanding quality and flexibility makes this product ideal option for wireless bridging especially in mission critical connectivity applications requiring reliable data transmission.

_____________________________________________________________________________________

Specification

720 MHz powerfull CPU + iPoll3 / 11ac radio.
Up to 30 dBm output power
Integrated 23 dBi dual-polarized directional panel antenna
Powerful operating system

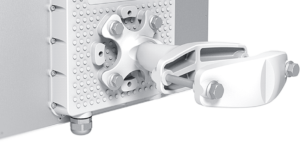

Heavy duty wall / pole mount bracket included

Distance recommendation:
PTMP mode: 12 km/ 7.45 mi
PTP mode: 20 km/ 12.43 mi

Interfaces:
10/100/1000 Base-T, RJ45 + PoE
