INNOVATION IN CONNECTIVITY

LigoDLB 5-90AC

500+ Mbps

Equipped with a 750MHz QCA 9563 CPU, a QCA 9882 radio, and 64MB RAM/16MB Flash Memory, the LigoDLB 5-90ac brings efficiency to the next level.

The state-of-the-art RF design delivers great output power, improves range, and enables capacity over 256QAM.

+500Mbps of throughput—the result of a powerful hardware platform with an 802.11ac technology-based radio and the iPoll proprietary data transmission protocol.

The LigoDLBac Series is backward-compatible with LigoDLB using iPoll, extending the lifetime of DLB devices and making network expansion and upgrading straightforward and inexpensive.

DLB Series is Made to Excel in:

-Internet Access -Video Surveillance -Rural Connectivity

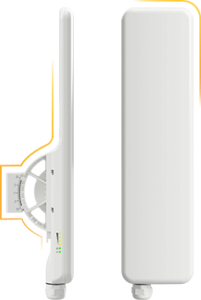

Small Form Factor

LigoWave presents a new smaller form for the base station’s enclosure, which is lighter yet still retaining IP66-rated weather protection. Smaller packaging reduces freight costs and makes them less obvious. The new design has no metal parts, which makes them lighter and corrosion resistant.

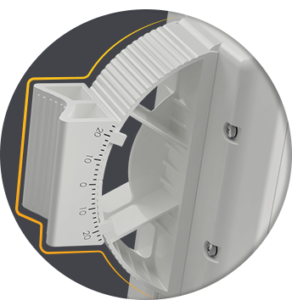

Innovative Mounting Bracket

The adjustable mounting bracket is very easy to assemble and install. It consists of two easy-to-connect parts that allow tilting the device up and down when installing on a pole.

_____________________________________________________________________________________

Specification

500+ Mbps capacity
High power (30 dBm) radio
Proprietary protocol (iPoll)
Integrated 18 dBi dual-polarized 90 degree sector antenna
Zero loss design
Integrated surge protection
Inovative mounting

Coverage recommendations (max)
5 km (3.1 mi)

Interfaces
1 x 1000 Base-T (passive PoE 24V)
